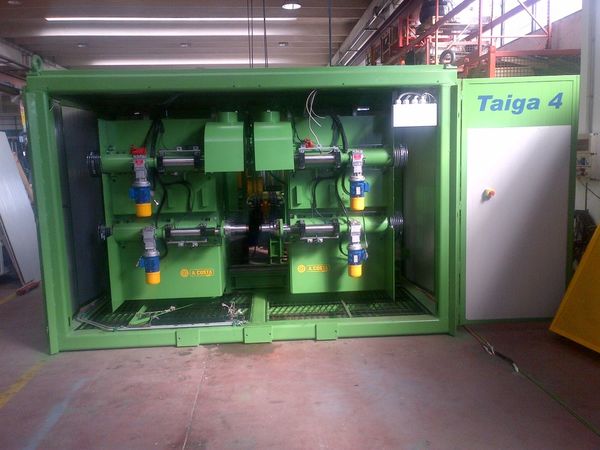

4-Shafts Multiple ripsaw
TAIGA
Code equipment: Taiga-EN
Short description
Taiga - Automatic 4-shafts multiple ripsaw to cut middle and big size logs/prisms in longitudinal direction for side boards and central boards/prisms. Machine equipped with feed-outfeed systems with feeding chain and pressure units.
Taiga - 4-shafts Line machine to cut the round logs and/or prisms in longitudinal direction for side boards and central boards/ prisms/ beams.

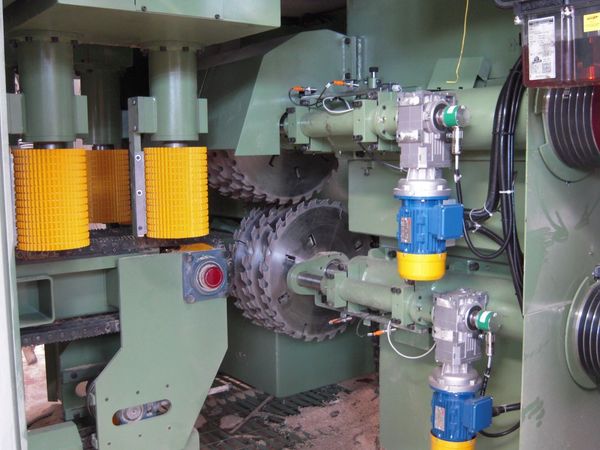

Taiga machine, as usual, installed as main machine into the Sawmill lines, produced by A.Costa Righi. Machine Taiga equiped with special feeding and extraction systems with a central feed chain, upper pressure units and with special conveyor to withdraw the produced materials from machine.

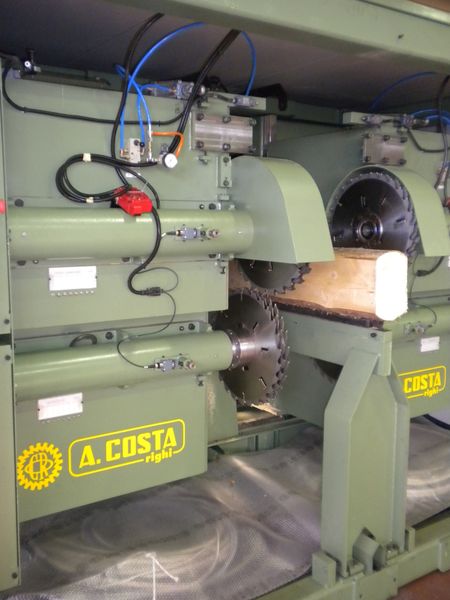

Machine has 4 shafts (2 shafts onthe left side and 2 shafts on the right sider), at each side the shafts are installed strictly one under other.
Each group (left or right, top group or bottom) of shafts can move in motorized way.
Top and bottom shafts can move up-down (more close or more wide). And positions of top and bottom shafts are strictly one under other, also installed blades shall be one under other on the each pair.
Left or right pairs of shafts can move (more close or more wide) and can move in non simmetrical way in connection with central axis of machine.

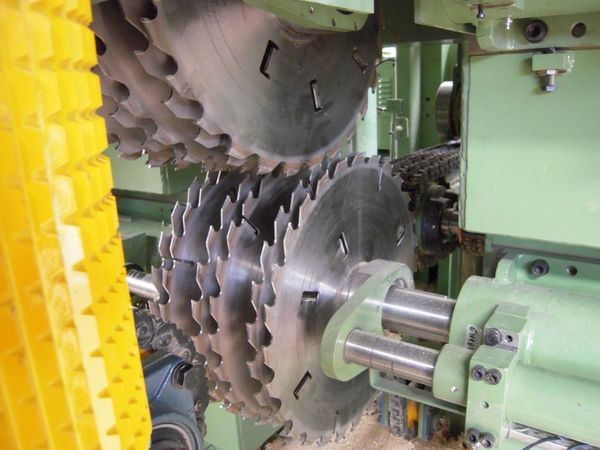

On each machine shaft may be installed from 1 till 8 blades. In vertical way the blades shall be installed strictly in simmetrical way - one under other.
Machine Taiga has modifications for:
Taiga machine, as usual, installed as main machine into the Sawmill lines, produced by A.Costa Righi. Machine Taiga equiped with special feeding and extraction systems with a central feed chain, upper pressure units and with special conveyor to withdraw the produced materials from machine.
Machine has 4 shafts (2 shafts onthe left side and 2 shafts on the right sider), at each side the shafts are installed strictly one under other.
Each group (left or right, top group or bottom) of shafts can move in motorized way.
Top and bottom shafts can move up-down (more close or more wide). And positions of top and bottom shafts are strictly one under other, also installed blades shall be one under other on the each pair.
Left or right pairs of shafts can move (more close or more wide) and can move in non simmetrical way in connection with central axis of machine.
On each machine shaft may be installed from 1 till 8 blades. In vertical way the blades shall be installed strictly in simmetrical way - one under other.
Machine Taiga has modifications for:
- different logs/prisms dimensions;
- different motor power for main catting shafts;
- automatic positioning/repositioning of shafts and cutting blades.
