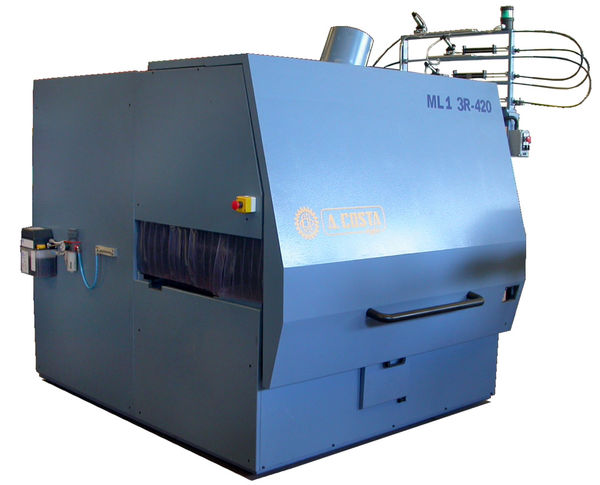

One spindle edging / ripsaw machine with movable blades ML 3R-420
Code equipment: ML3R-420 EN
Short description
One spindle multi-rip saw and/or edging trimming machine ML 3R-420. Very suitable as universal rip saw and/or edging machine with one fixed and three (or two, or one) movable sawblades.
Machines ML 3R(2R, 1R)-420 - multiripsaw, trimming/ edging with fixed and movable sawblades.
One spindle multiripsaw, trimming/ edging automats with fixed and movable sawblades ML 3R(2R, 1R)-420 are used as for trimming/ edging of side boards get in process of longitudinal round logs cutting or as multiripsaw to proceed prisms with not big thickness.
When machines ML 3R(2R, 1R)-420 are used as multiripsaw, the max. working thickness of processsing prisms or beams may be till 115 mm. In case this machine used as trimming/ edging automat, the max. working thickness of prisms / beams may be till 100 mm.
Consequently, the ML 3R(2R, 1R)-420 models have one fixed saw (group of saws) and:
Main technical characters of ML 3R(2R, 1R)-420 machines:
- maximum passing width of processing pieces till 900 mm;
- maximum working width of pieces till 420 mm;
- maximum distance between machine lateral blades till 380 mm;
- minimum length of processing pieces - 700 mm.
One spindle multiripsaw, trimming/ edging automats with fixed and movable sawblades ML 3R(2R, 1R)-420 are used as for trimming/ edging of side boards get in process of longitudinal round logs cutting or as multiripsaw to proceed prisms with not big thickness.
When machines ML 3R(2R, 1R)-420 are used as multiripsaw, the max. working thickness of processsing prisms or beams may be till 115 mm. In case this machine used as trimming/ edging automat, the max. working thickness of prisms / beams may be till 100 mm.
Consequently, the ML 3R(2R, 1R)-420 models have one fixed saw (group of saws) and:

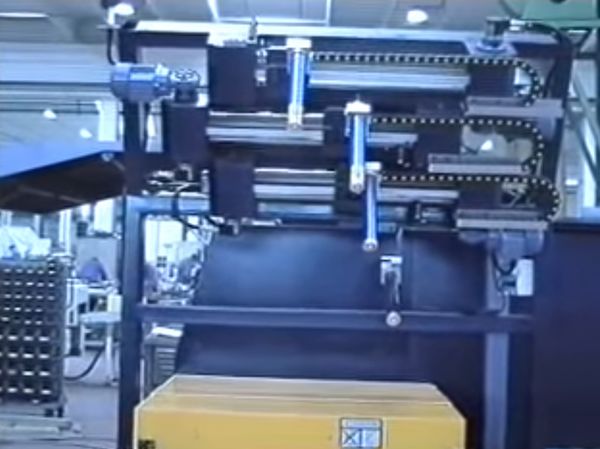

- Model 3R - three movable, motor-driven saws (groups of saws),
- Models 2R and 1R - two and one movable saws (groups of saws), respectively.
The ML1-420 machine has a very wide range of motors that may be installed, from 22.0 to 75.0 kW.

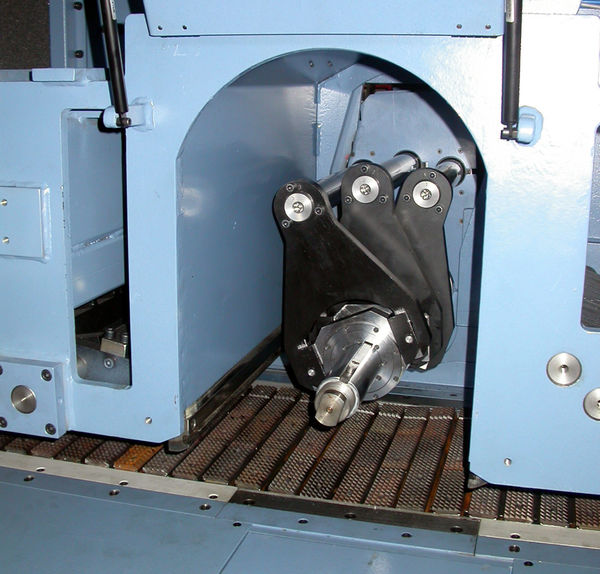

The main working shaft of the machine is movable (in the up-down direction), which provides a significant advantage - the ability to use the optimal saw blades depending on the thickness of the material being processed.
Main technical characters of ML 3R(2R, 1R)-420 machines:
- maximum passing width of processing pieces till 900 mm;
- maximum working width of pieces till 420 mm;
- maximum distance between machine lateral blades till 380 mm;
- minimum length of processing pieces - 700 mm.
