Longitudinal parquet automat moulders MISTRAL
Code equipment: MISTRAL
Short description

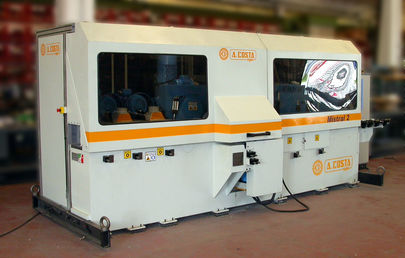

Longitudinal parquet machine / moulder MISTRAL - complete automat for massive (solid wood) parquet production with A.Costa patented feeding system. First machine of the B3 Lines.
Longitudinal parquet automatic moulder MISTRAL (MISTRAL /PA4 or MISTRAL /PA6) - complete automat to produce all the longitudinal operations in massive (solid wood) parquet production. Machine MISTRAL usually used as first, longitudinal machine in the through all world known A.Costa B3 Parquet Lines. Machine MISTRAL is the world known simbol of quality and highest reliability of A.Costa trade mark parquet equipment.
Depend of the Client needs machine can have four (for MISTRAL /PA4) or six ( for MISTRAL /PA6) working units.
Mod. MISTRAL /PA6 has: two bottom horisontal spindles (1-2), two vertical (3-left, 4-right spindles) and two top horisontal (5-6) spindles. Machines MISTRAL has the patented special top chain feeding system, very strong and with 100% acuracy by spesial "feeding dogs" keep and slidе the pieces through all working units. Exact this patented feeding system establish the very big productivity and highest quality of production.
Machines MISTRAL also has the built-in processing piece introducing system. This introducing system gives such adventage, that one operator can manage till three machines in the same time.
Main technical characters of MISTRAL machines:
- min-max length of proceeding pieces: 200-1300(2500) mm;
- min-max width of proceeding pieces: 40-180 мм;
- min-max thickness of proceeding pieces: 8-85 mm;
- continuously adjustable feeding speed: 13-45 m/min.
Depend of the Client needs machine can have four (for MISTRAL /PA4) or six ( for MISTRAL /PA6) working units.
Mod. MISTRAL /PA6 has: two bottom horisontal spindles (1-2), two vertical (3-left, 4-right spindles) and two top horisontal (5-6) spindles. Machines MISTRAL has the patented special top chain feeding system, very strong and with 100% acuracy by spesial "feeding dogs" keep and slidе the pieces through all working units. Exact this patented feeding system establish the very big productivity and highest quality of production.
Machines MISTRAL also has the built-in processing piece introducing system. This introducing system gives such adventage, that one operator can manage till three machines in the same time.
Main technical characters of MISTRAL machines:
- min-max length of proceeding pieces: 200-1300(2500) mm;
- min-max width of proceeding pieces: 40-180 мм;
- min-max thickness of proceeding pieces: 8-85 mm;
- continuously adjustable feeding speed: 13-45 m/min.
