Two spindle heavy multiripsaw

Code equipment: Leone/2 EN

Short description

Complete automatic double spindle strong and heavy multi-ripsaw LEONE/2 to proceed prisms/ beams with big thickness, till 250 mm.

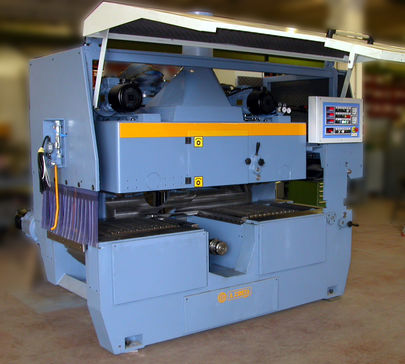

Double spindle multi-ripsaw LEONE/2. LEONE/2 it is the flagship of the range, worldwide known as the icon of the multi-ripsaw, unique and inimitable, suitable for cuts of maximum thickness up to 250 mm, the dream of all sawmills for maximum precision of cut.
Mod. LEONE/2 is produced in two main modifications:
LEONE/2 - 160, as heavy multi-ripsaw to proceed short (minimum length in 800 mm) prisms/beams peaces into pallet boards;
LEONE/2 - 250, as very powerful multi-ripsaw to proceed prisms/beams (minimum length in 1100 mm) with big thickness into trimming boards.

Maximum width of proceeding pieces - till 850 mm. Max. working width - 500 mm.
Mod. LEONE/2 has an adaptive in wertical way top pressure device. In diapason with 60 mm the adaptation of top presure unit may be done in automatic way.
In base configuration machine has the track (double chain) feeding system: one double chain for infeeding pieces into saw process and other one double chain - for outfeeding of final product from machine. In base configuration LEONE/2 woking speed of machine may variated from 4 till 40  m/min.
Machine has modification can work with speed till 120 m/min. This model instead of feed/ outfeed double chains has special speed roller feeding system.
Machine has a very spread range of motors may be installed on it. Power range of possible motors: from 75,0 till 110 KWt.
Both working shafts of machine may be moved (become wide or close) in vertical direction by special motorised system. In result a lot of posibilities in using power minimization, rizing  of output volume production optimization may be applied by using of saw blades with different diameters and thickness. The interval of using saw blades diameters: 320 - 400 mm.

The LEONE/2 machine is able to satisfy all cutting operations for packaging, construction and carpentry products.

# # # # #
