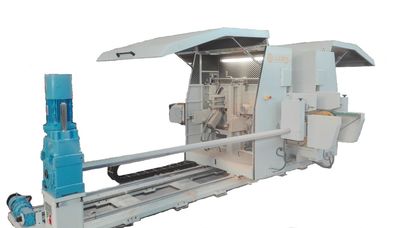

Profiling double end tenoner machine
KUADRA
Code equipment: KUADRA
Short description
Profiling double side tenoner parquet machine KUADRA - very high precision and very high productivity machines for multilayer parquet profiling (teeth-groove, click).
Double end profiling tenoner parquet machines KUADRA - for two sides longitudinal and/or transversal parquet boards (teeth-groove, click) connection processing. Very high precision and very high productivity machines.
Machines of KUADRA CS type are applied for longitudinal parquet boards connection processing. Depend of the complexity of profiles produced machines equipped with from 3 till 7 spindles (working units) per each side of machine. Also depend of the complication of the profiles spindles may have the fixed or movable position: move up and down, go ahead and back, change the working angle in connection with the proceeding board.
Main technical characteristics of KUADRA CS machines type.
Min-max length of proceeding parquet boards: 350-2200(2500 or 3000) mm.
Min-max width: 60-140 or 120-240 (optional 57-400) mm.
Min-max thickness: 8 - 50 mm.
Feeding speed: 10 - 40 (optional till 90) m/min.
Adjustable speed rotation of working units till 7000 (optional до 9000) rpm.
Motors power of working units: 1,5 - 5,5 (optional till 11,0) KWt.
Machines of KUADRA T type are applied for two sides transversal parquet boards connection processing. Depend of the complexity of profiles produced machines equipped with from 3 till 7 spindles (working units) per each side of machine. Also depend of the complication of profiles spindles may have the fixed or movable position: move up and down, go ahead and back, change the working angle in connection with the proceeding board.
Main technical characteristics of KUADRA T machines type.
Min-max length of proceeding parquet boards: 350-2200 (optional till 3200) mm.
Min-max width: 60-240 (optional 57-400) mm.
Min-max thickness: 8 - 50 mm.
Feeding speed: 10 - 32 (optional till 70) m/min.
Adjustable speed rotation of working units till 7000 rpm.
Motors power of working units: 1,5 - 5,5 (optional till 8,1) KWt.
Machines of KUADRA CS type are applied for longitudinal parquet boards connection processing. Depend of the complexity of profiles produced machines equipped with from 3 till 7 spindles (working units) per each side of machine. Also depend of the complication of the profiles spindles may have the fixed or movable position: move up and down, go ahead and back, change the working angle in connection with the proceeding board.
Main technical characteristics of KUADRA CS machines type.
Min-max length of proceeding parquet boards: 350-2200(2500 or 3000) mm.
Min-max width: 60-140 or 120-240 (optional 57-400) mm.
Min-max thickness: 8 - 50 mm.
Feeding speed: 10 - 40 (optional till 90) m/min.
Adjustable speed rotation of working units till 7000 (optional до 9000) rpm.
Motors power of working units: 1,5 - 5,5 (optional till 11,0) KWt.
Machines of KUADRA T type are applied for two sides transversal parquet boards connection processing. Depend of the complexity of profiles produced machines equipped with from 3 till 7 spindles (working units) per each side of machine. Also depend of the complication of profiles spindles may have the fixed or movable position: move up and down, go ahead and back, change the working angle in connection with the proceeding board.
Main technical characteristics of KUADRA T machines type.
Min-max length of proceeding parquet boards: 350-2200 (optional till 3200) mm.
Min-max width: 60-240 (optional 57-400) mm.
Min-max thickness: 8 - 50 mm.
Feeding speed: 10 - 32 (optional till 70) m/min.
Adjustable speed rotation of working units till 7000 rpm.
Motors power of working units: 1,5 - 5,5 (optional till 8,1) KWt.
